GECE SWING ARM OPENER

 GECE SWING ARM OPENER

Technical Specification

S24GECE1200M2

  1. Working Voltage : 220V/50 Hz AC/110V/60 Hz AC/380V/50 HzAC or DC 24 V
  2. Motor Power : 100 W
  3. Running Speed : 3600 r/min
  4. Applicable Door Weight : 800 Kg
  5. Working Temperature : -25°C - +65°C
  6. Machine Net Weight : 30Kg
  7. Reserved Cable Installation : 1mm2 x 6-core (or 1.5 m2 x 2-core) Cable
  8. Output Torque : 2500N.m

Product Specification

Open Thrust : 500N
Lifting Range : 0 ~ 250mm
Remote Control Distance : Open Area > 30 Meters
Relative Humidity : < 60%

Special Functions

One Key Mode / 4 Key Mode
Easy Lock Functions on Remote
Single Leaf or Double Leaf Opening
Automatic Detection and Protection
Access Control
Gate Operating Indication
Backup Battery Interface
Gate Opening Angle and Sequence can be set

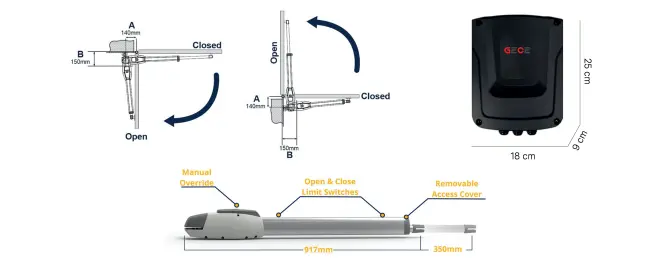

GECE Swing Arm Dimensions
