GECE SWING ROLLER OPENER

 GECE SWING ROLLER OPENER

Technical Specification

S24GECE1200M1

  1. Working Voltage : 220V/50 Hz AC/110V/60 Hz AC/380V/50 HzAC or DC 24 V
  2. Motor Power : 120 W x 2
  3. Running Speed : 10 ~ 15m/min
  4. Applicable Door Weight : 1200Kg
  5. Working Temperature : -50°C - +50°C
  6. Machine Net Weight : 25Kg
  7. Reserved Cable Installation : 1mm2 x 6-core (or 1.5 m2 x 2-core) Cable

Product Specification

Open Thrust : 600N
Lifting Range : 0 ~ 300mm
Remote Control Distance : Open Area > 50 Meters
Relative Humidity : < 60%

Special Functions

One Key Mode / 4 Key Mode
Easy Lock Functions on Remote
Single Leaf or Double Leaf Opening
Automatic Detection and Closing
Access Control
Gate Opening Indication
Backup Battery Interface
Gate Opening Angle and Sequence can be set

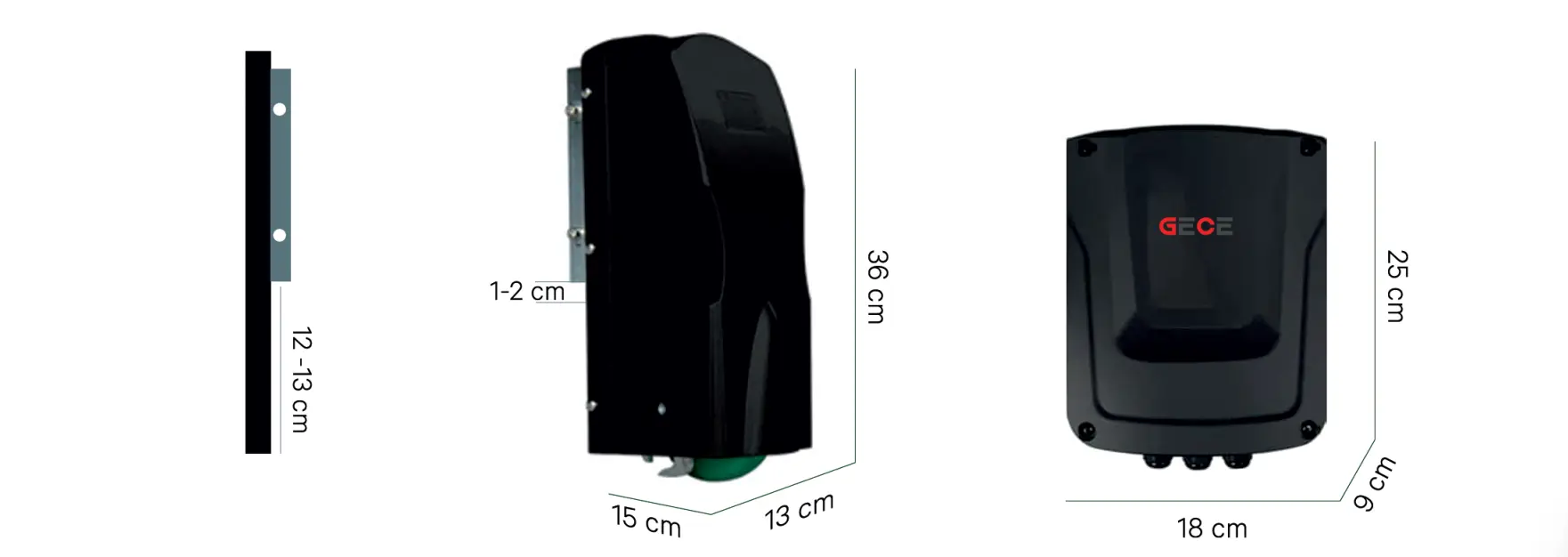

GECE Swing Dimensions
